Hospice Cart Dimensioning

March 23, 2015 2 comments

When planning to make an epic mistake on a project there are several areas that can go un-noticed until you are quite far into a project. Poor plans can lead to a missed cut usually in the latter portions of a project when the only option is to head back to the lumber yard for a new piece of wood. Bad measurements can have the same results and usually occurs when when you forget to add an inch to your measurement due to the damaged tape you refuse to throw away. Typically I prefer to layout a project incorrectly and then proceed to chop out several mortises before realizing they are on the wrong side of a leg. Not today, well not yet anyway.

Laying out the locations of mortises is something that I take very slowly checking and double checking to insure they are in the correct place. Fortunately today when I checked I found the problem immediately and was able to make a correction before chopping began. I’m sure I will make another mistake further along.



  The rest of the day was spent dimensioning lumber and planing to the correct thickness. By the end of the day most of the parts were ready for joinery. I’m hoping over the next week to get the mortises chopped out so that next weekend can be spent fitting the tenons and gluing up the top and bottom shelf.



My mistake of the day was forgetting to publish the blog. Fixed today!

Categories: Hospice Cart

Hospice Cart Squaring the legs

March 16, 2015 Leave a comment

After work I took an hour to do some final work on the cart legs. Started out by doing a little spring cleaning to my #7 plane. After a long winter each tool will get a good cleaning and wax to make sure there is no rust begining to form. I also took the time to sharpen an add a little oil to the frog.

While I was sharpening I thought it worth pointing out the use of auto glass cleaner to lubricate the diamond stone. Someone along the way mentioned that since it contains very little water rust doesn’t form. Compare auto glass cleaner with regular glass cleaner and see for yourself.

The sound of a freshly sharpened plane is very distinct from one that needs sharpening. It only took a few minutes per leg to get all of the sides square. Next up layout of the mortises. Four per leg plus a through tenon. Looking forward to a massive mortise session this weekend.

Categories: Hospice Cart

Cart Wheels 2

February 28, 2015 Leave a comment

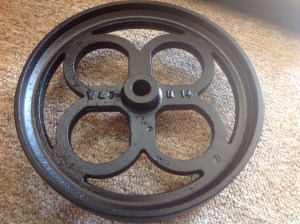

Picked up the cart wheels for the bar cart and they look great! Some discussion continues about which wheels to use for the first one so I’m still in limbo about the plans… IMG_1312   IMG_1313

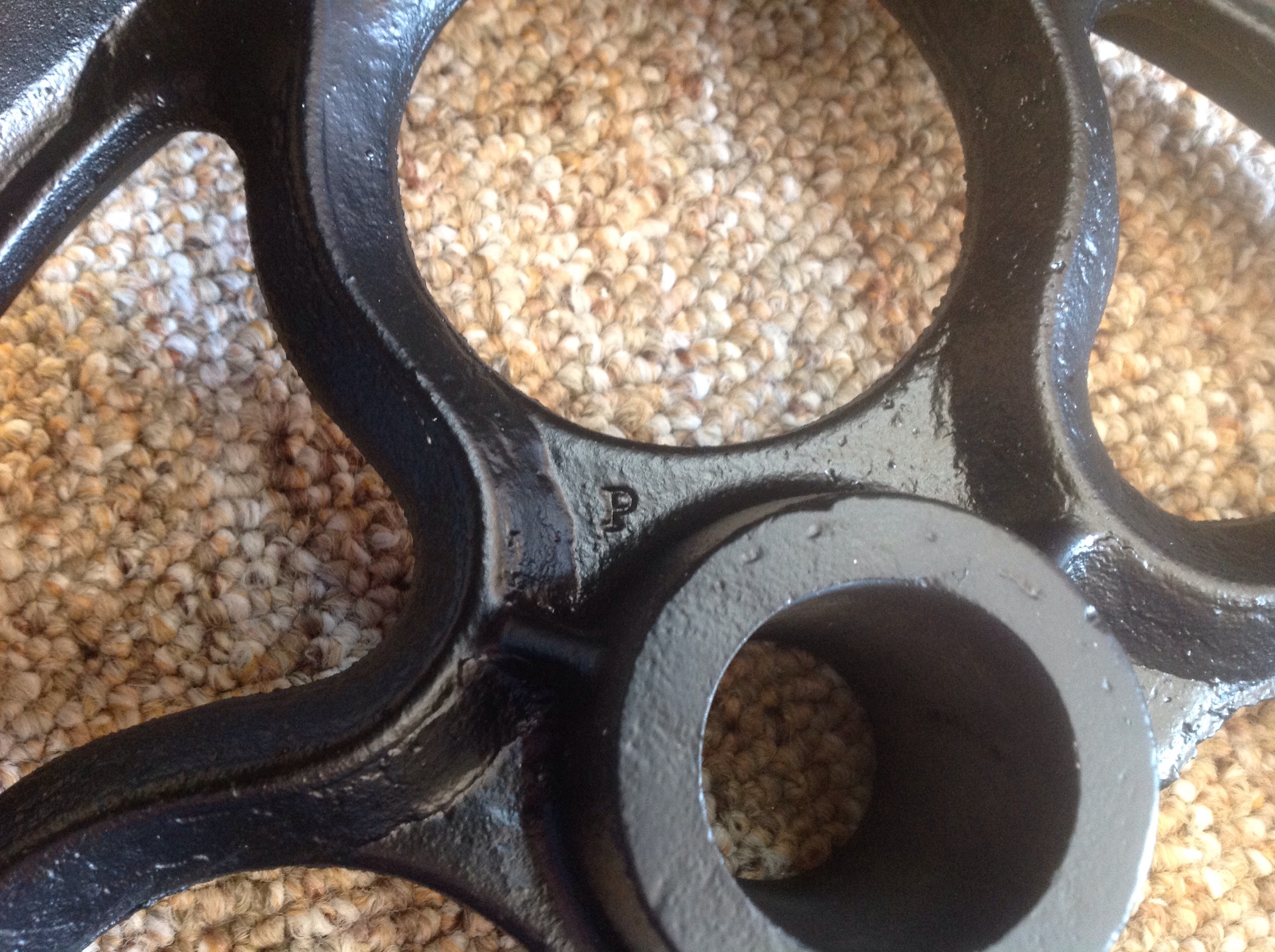

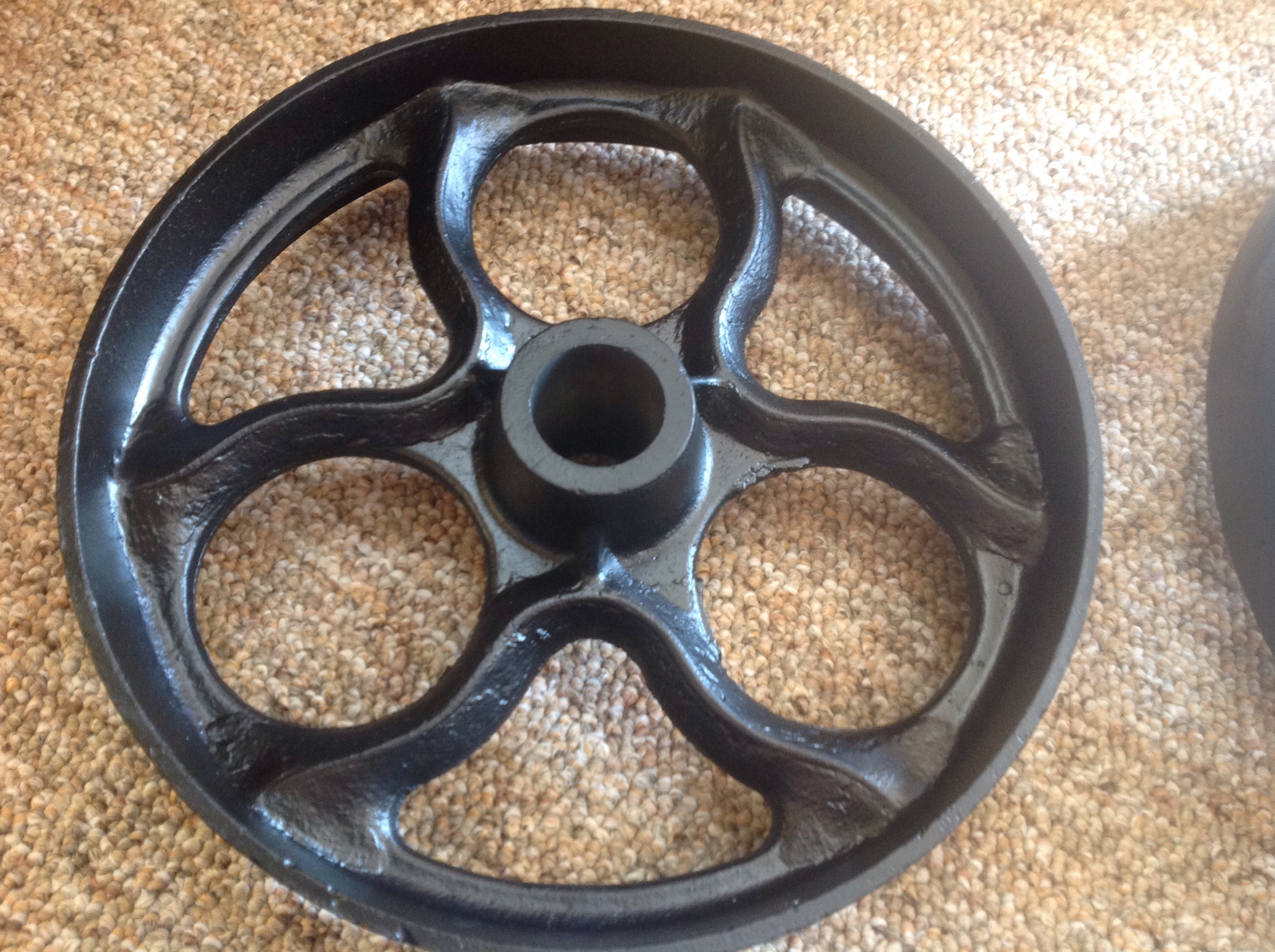

I’m a little curious about the screw heads and how they played a role in construction. I didn’t notice them when I picked them up at the sandblasters, can’t play with them now that the paint is on. The inscription is W&P M14. The curves of the second set capture my eye and even include grease nipples, although I’m sure they will need to be replaced after being blasted and painted. IMG_1316IMG_1317

Categories: Hospice Cart

Cart Wheels

February 15, 2015 1 comment

What do you do when it is below zero and the shop heater has no chance raising the temperature above freezing? Thinking, drafting, and planning! My wife spends a tremendous amount of time and energy volunteering and one of her favorite gigs is preparing for a hospice auction. This year I have been roped in to provide a cart that can be used as a bar. I have the picture below to work from.

IMG_1261

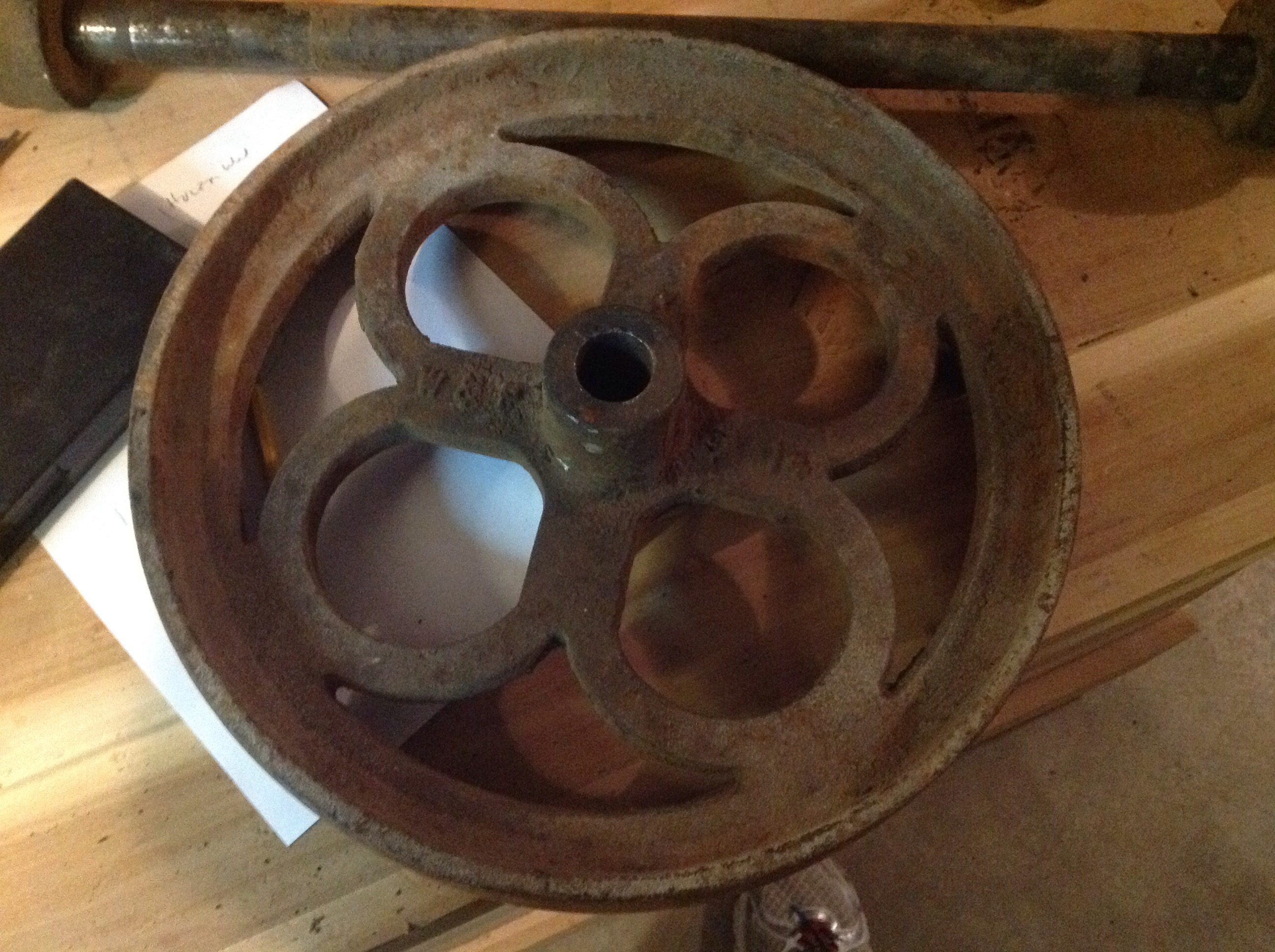

Last weekend we picked up two sets of wheels and axles (I already sense a second cart). The wheels come from old factory carts and are heavy cast iron with a light coating of rust.

IMG_1252

IMG_1251

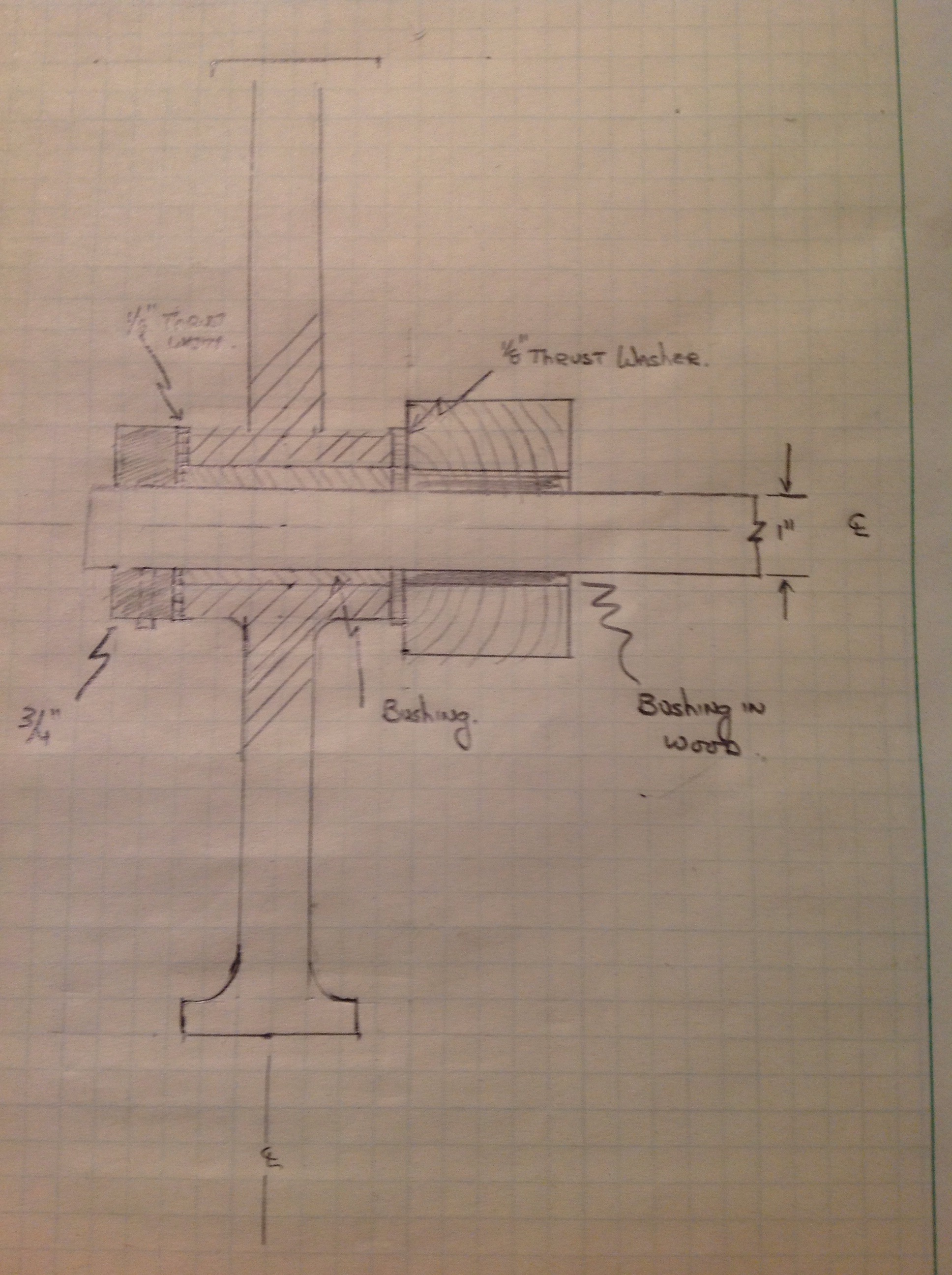

After a little bit of searching we found someone to sandblast them and another friend to give them a coat of paint. Before sending them off I took some measurements so I could move forward with the cart design. If these things were easy anyone could do it! It didn’t take long before the challenges started to add up. The first set of wheels didn’t fit one of the axles at all. May need some bushings to make them work. The second axle only fits on one of the other wheels the second wheel is 5/32 off ! My quick test fitting when we bought them involved one axle turned end for end into one wheel. Thank goodness for McMaster Carr. After a few hours of measuring and drawing and I’m ready to order bushings, washers and an axle that should put one set right. Didn’t have much else to do today with the cold so didn’t mind searching the recesses of my brain for what’s left of my engineering degree.

IMG_1260
