Plane Aid – Flattening and Sharpening

Finished up the four planes this morning after using the 5th for parts. I hope that everyone is satisied with the results. The two Stanleys turned out to be a little more difficult than normal due to the blades not being particularly flat. I’ve never had that problem before but spent more time sharpening then has been typical. I also took the time to print out a couple of links that will hopefully help in the future showing the sharpening tools that I use etc.

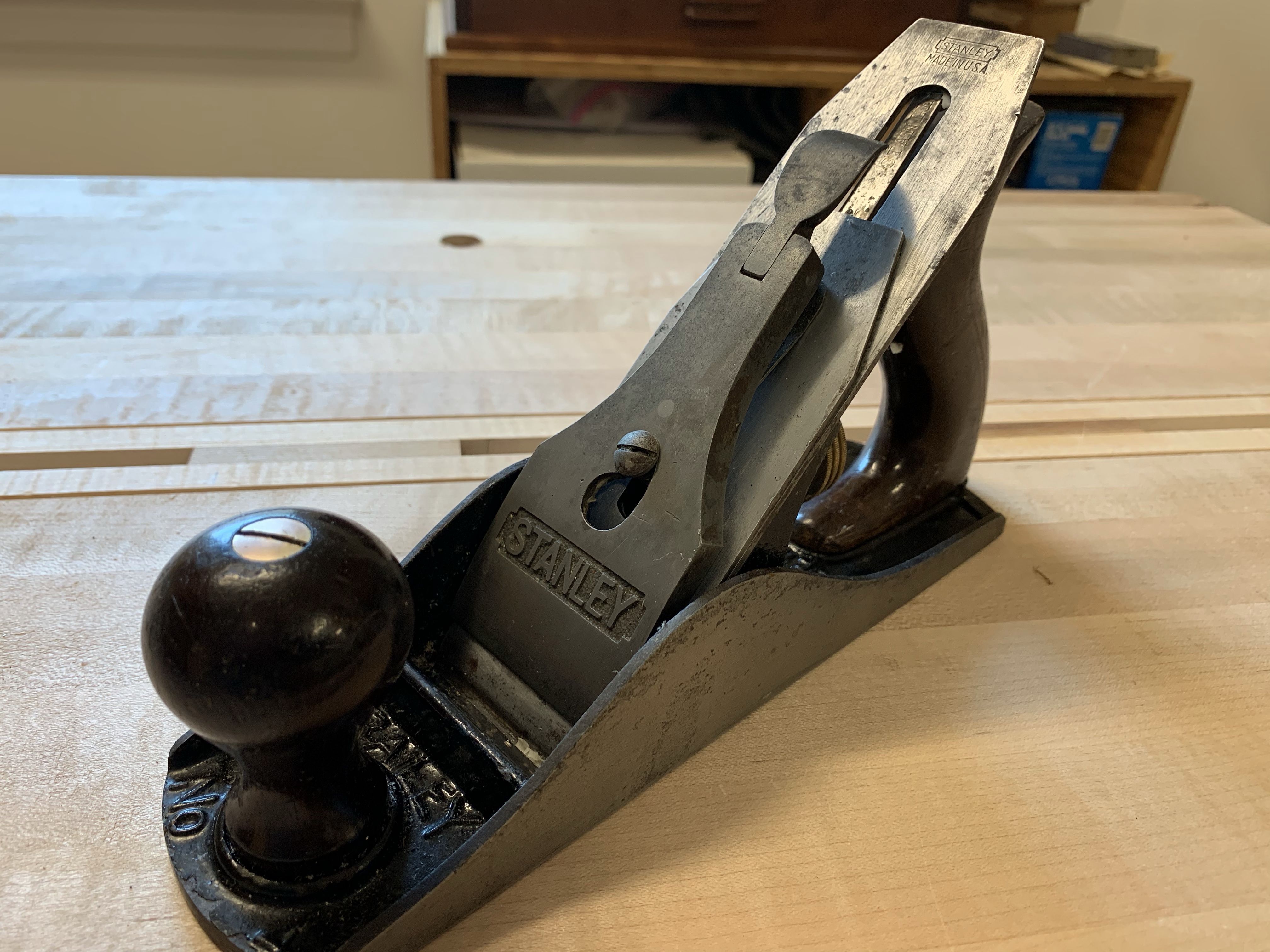

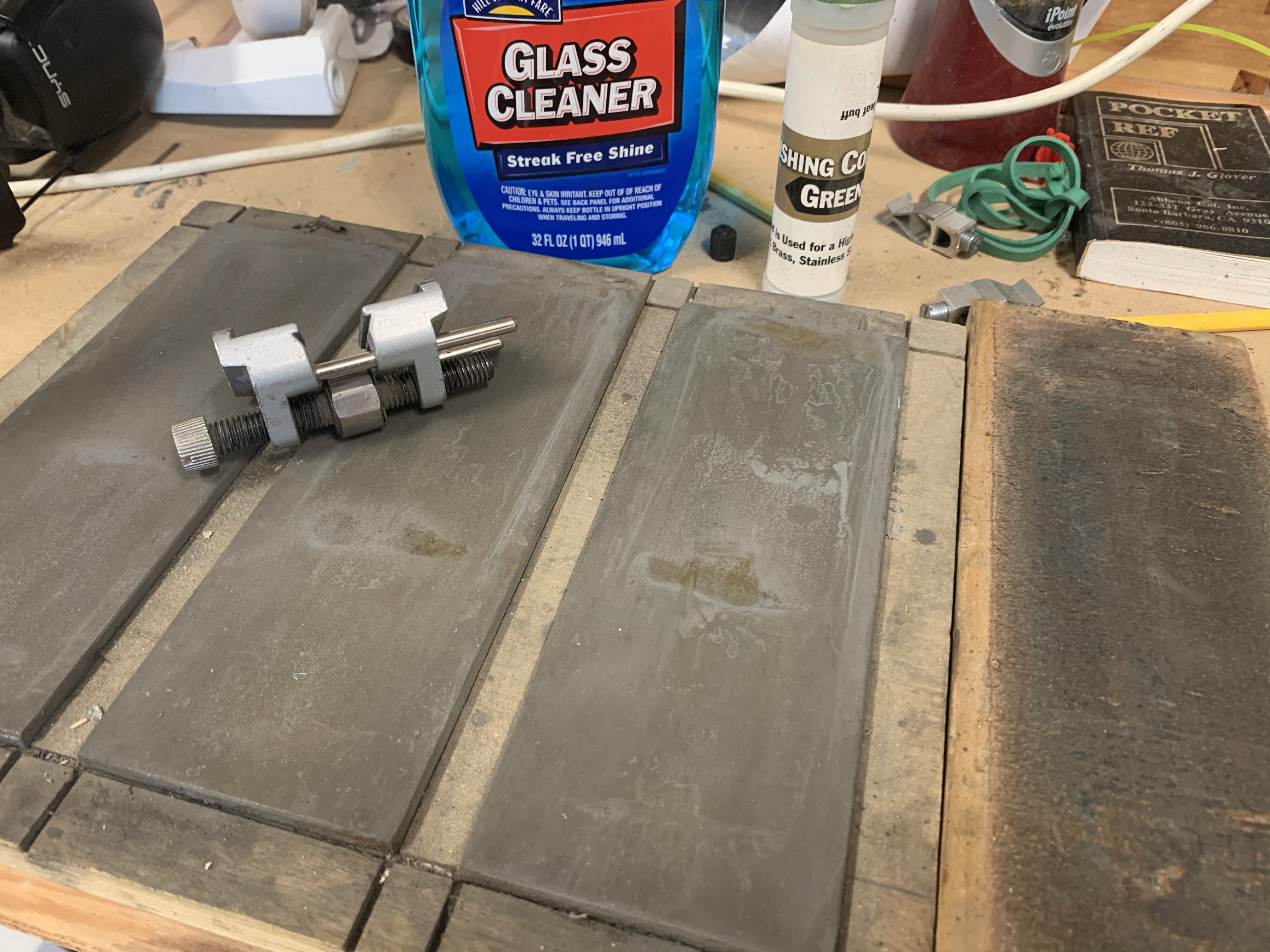

After taking the #4 apart and repairing the front knob I disassembled and got all of the rust and gunk off the plane. Flattening the sole wasn’t a problem and I made sure that all of the bolts and frog were clean and fiunctioned correctly. The problem sarted with the blade which did not clean up easily and took quite a bit of elbow grease along with some 800 grit sand paper and wd-40. Once clean I sharpened it and noticed that the back was nowhere near flat. This may be why the ownwer had problems sharpening. Eventually I put it on a 400 grit stone and worked it flat. I’ve had blades that were concave in the middle but this had a side that put up a fight. I sued my basic sharpening system, diamond stones strop sand an eclipse style guide. Next I had to spend a little time with the cap iron making sure its leading edge fit snugly to the blade. All in all it is a nice plane and should be a great add to the tool chest.

The block plane is a craftsman with aluminum cap. I tidied it up flattened the sole and sharpened the blade. This took very little time and will make a great little plane. The small plane also took only a little work after getting the rust off. This was another plane where the high grit paper and wd-40 came in handy. Sometimes these tools have all kinds of spill on them and using a degreaser makes the difference

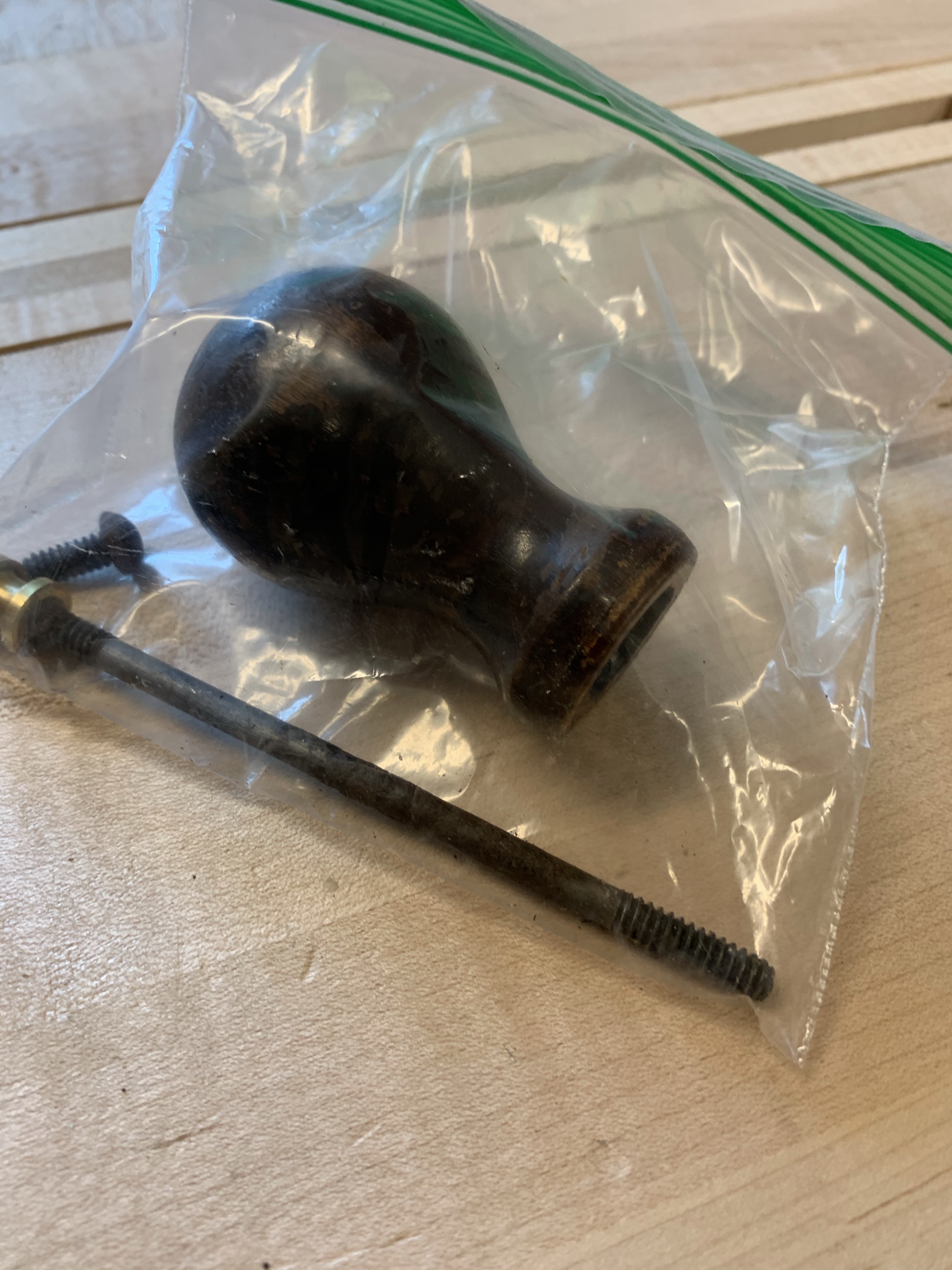

The final plane I worked on, fought me all the way and I think that it could still use a little polishing. There were two #5 planes in the box and after some thought I decided to use the newer plane for parts. I like the older style frogs. The handle from the plane was broken and although not too difficult to fix I did not have an old broken handle to source the rosewood from and felt that maple would be a poor choice. Thus I used the handle from the newer plane. The only downside being the use of a non brass screw to attach it. I placed all of the parts in a plastic bag so that the owner would have them for later repairs. The sole and blade needed quite a bit of work. Once cleaned and flat everything was sharpened and lubed. I also put quite a bit of wax on the sole and took it for a test run. Hopefully the owner is happy with the result.
